Optical Transceivers

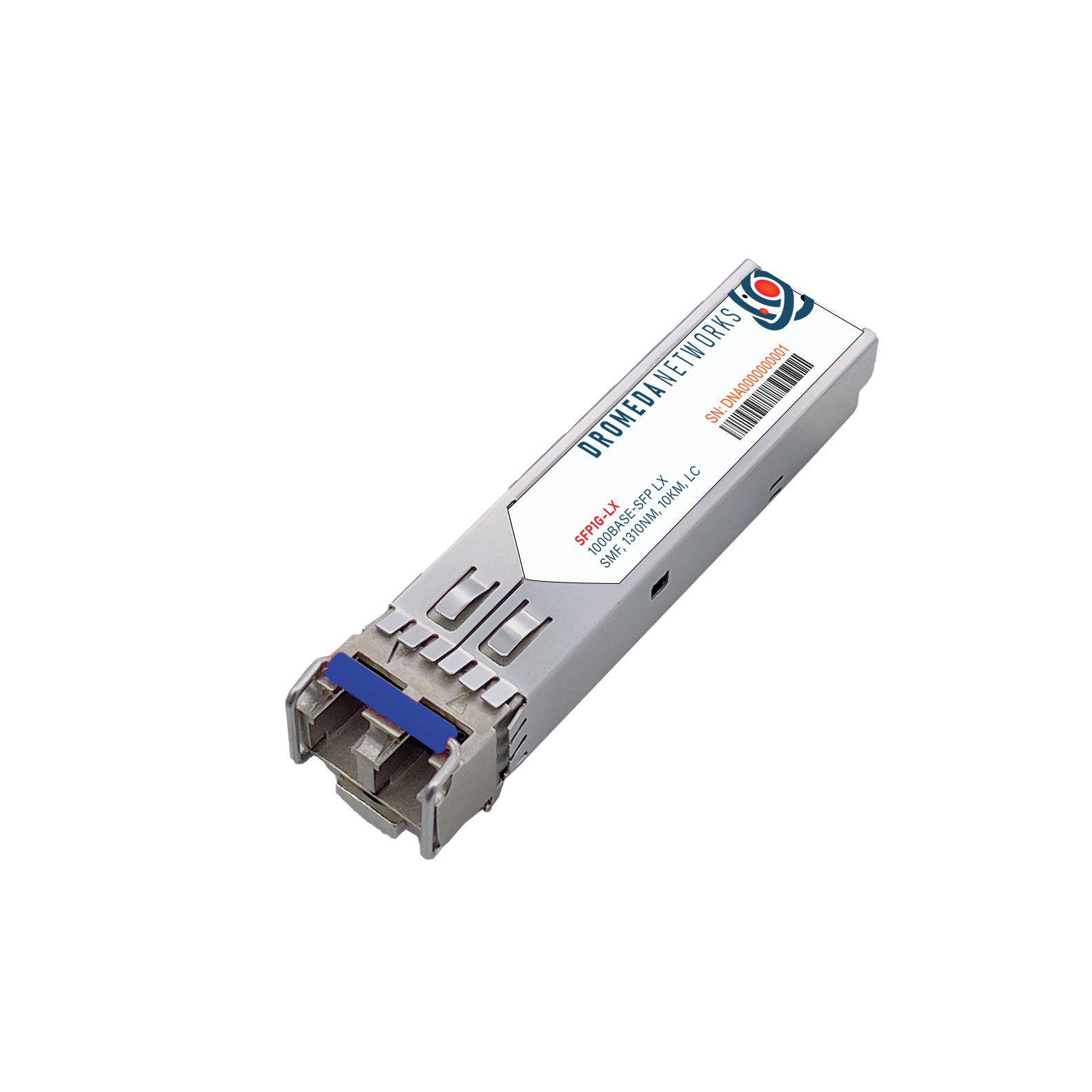

1000BASE-SFP TRANSCEIVERS
Small Form-Factor Pluggable (SFP) have been an industry standard for over a decade. Used in all applications from enterprise to telecommunications these transceivers can negotiate data rates from 100MB to 4.25GB making them some of the most versatile and utilized optics in the industry. With the ability to hot-swap these transceivers you don’t have to worry about any downtime while you update or reconfigure your network gear. synchronous optical networking (SONET), Gigabit Ethernet, Fibre Channel, PON, and other communications standards
Dromeda Networks Provides the Following Solutions for the 1000Base Transceivers. Form Factors: SFP, CSFP, GPON
Variants: Copper-T, SX, LX, EX, ZX, ZXL, GPON, CWDM, DWDM

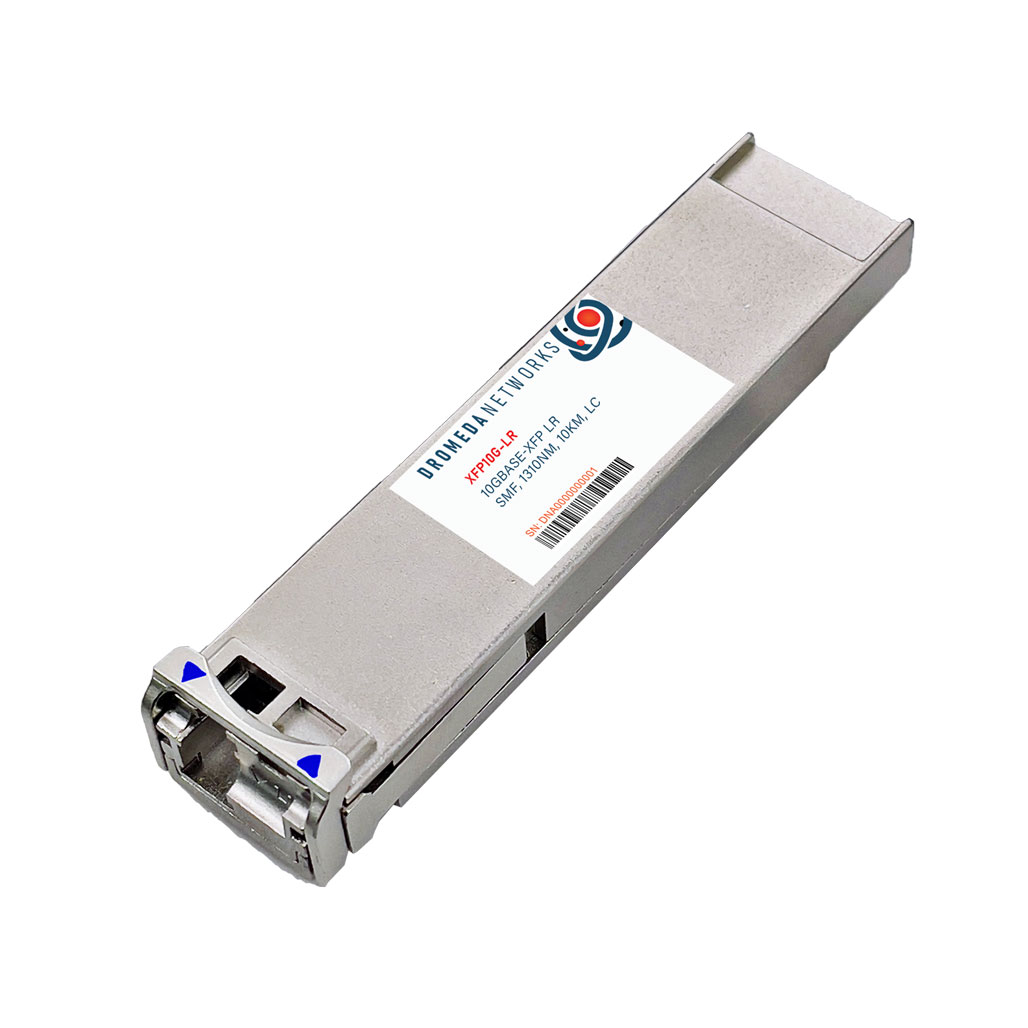

10GBASE-XFP TRANSCEIVERS
XFP is a slightly larger form factor than the popular small form-factor pluggable transceiver, SFP and SFP+. XFP modules are hot swappable and support multiple physical layer variants. Principal applications include 10 Gigabit Ethernet, 10 Gbit/s Fibre Channel, synchronous optical networking (SONET) at OC-192 rates, synchronous optical networking STM-64, 10 Gbit/s Optical Transport Network (OTN) OTU-2, and parallel optics links. They include digital diagnostics that provide management that were added to the SFF-8472 standard.
Dromeda Networks Provides the Following Solutions for these 10GBase XFP Transceivers.
Variants: SR, LR, ER, ZR, OC192, CWDM, DWDM

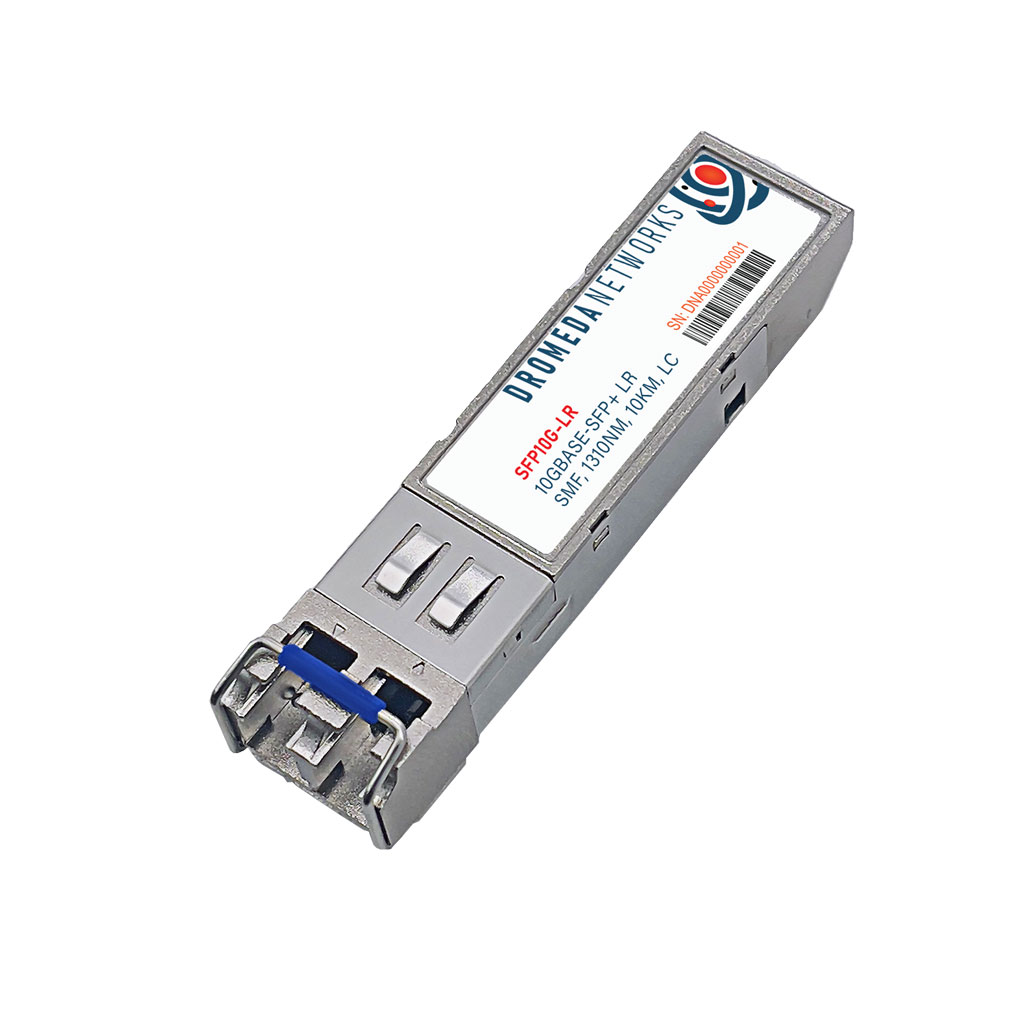

10GBASE-SFP+ TRANSCEIVERS
The SFP+ (enhanced small form-factor pluggable) is an enhanced version of the SFP that supports data rates up to 16 Gbit/s. SFP+ supports 8 Gbit/s Fibre Channel, 10 Gigabit Ethernet and Optical Transport Network standard OTU2. 10 Gbit/s SFP+ modules are exactly the same dimensions as regular SFPs, allowing the equipment manufacturer to re-use existing physical designs for 24 and 48-port switches and modular line cards. The SFP+ Form Factor includes digital diagnostics that provide management.
Dromeda Networks Provides the Following Solutions for the 10GBase SFP+ Transceivers.
Variants: SR, LR, LRM, ER, ZR, BiDi, CWDM, DWDM, OC192, PON, 10GBase-T

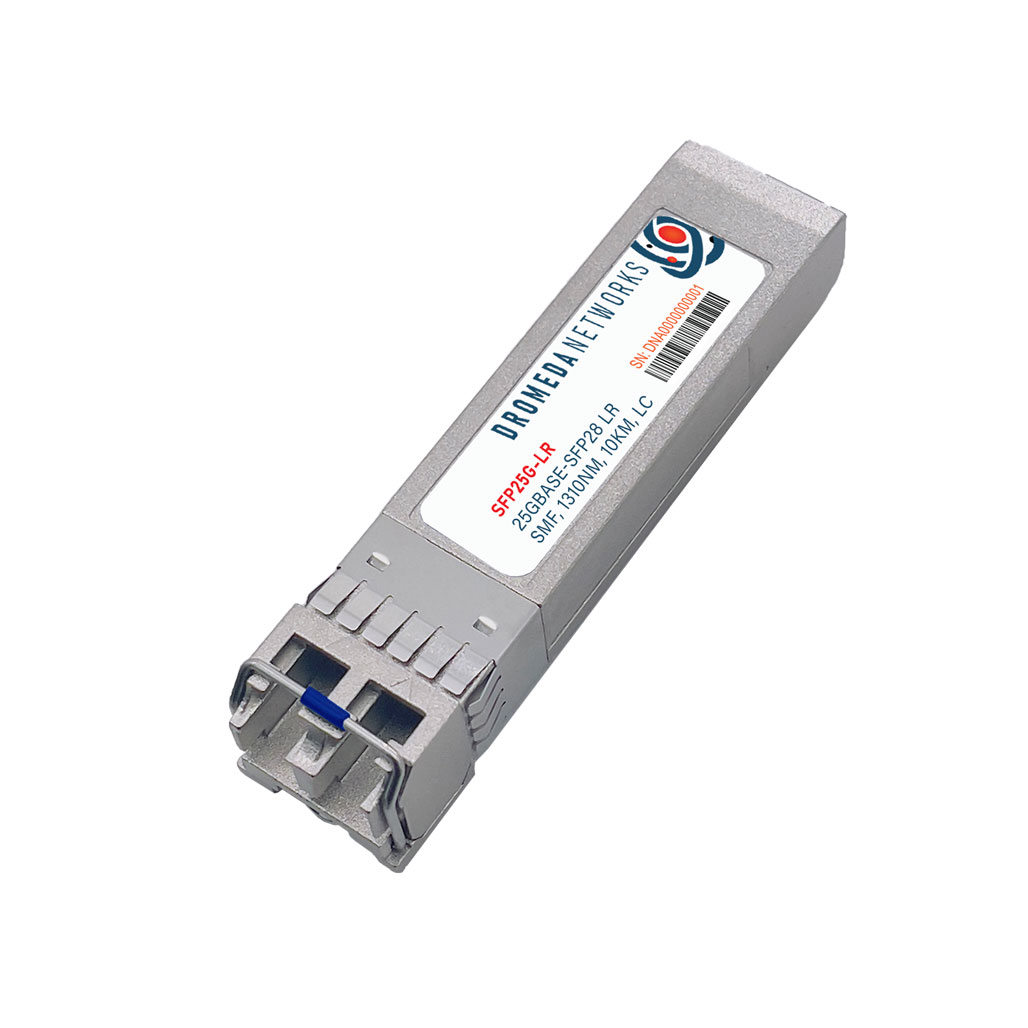

25GBASE-SFP28 TRANSCEIVERS
Small Form-Factor Pluggable Twenty Eight (SFP28) is a 25 Gbit/s interface which evolved from the 100 Gigabit Ethernet interface which is typically implemented with 4 by 25 Gbit/s data lanes. Identical in mechanical dimensions to SFP and SFP+, SFP28 implements one 28 Gbit/s lane accommodating 25 Gbit/s of data with encoding overhead. SFP28 modules exist supporting singlemode or multimode fiber connections. The SFP28 Form Factor includes digital diagnostics that provide management.
Dromeda Networks Provides the Following Solutions for the 25GBase SFP28 Transceivers.
Variants: SR, LR, Dual Rate, ER, FC, BiDi, CWDM, DWDM

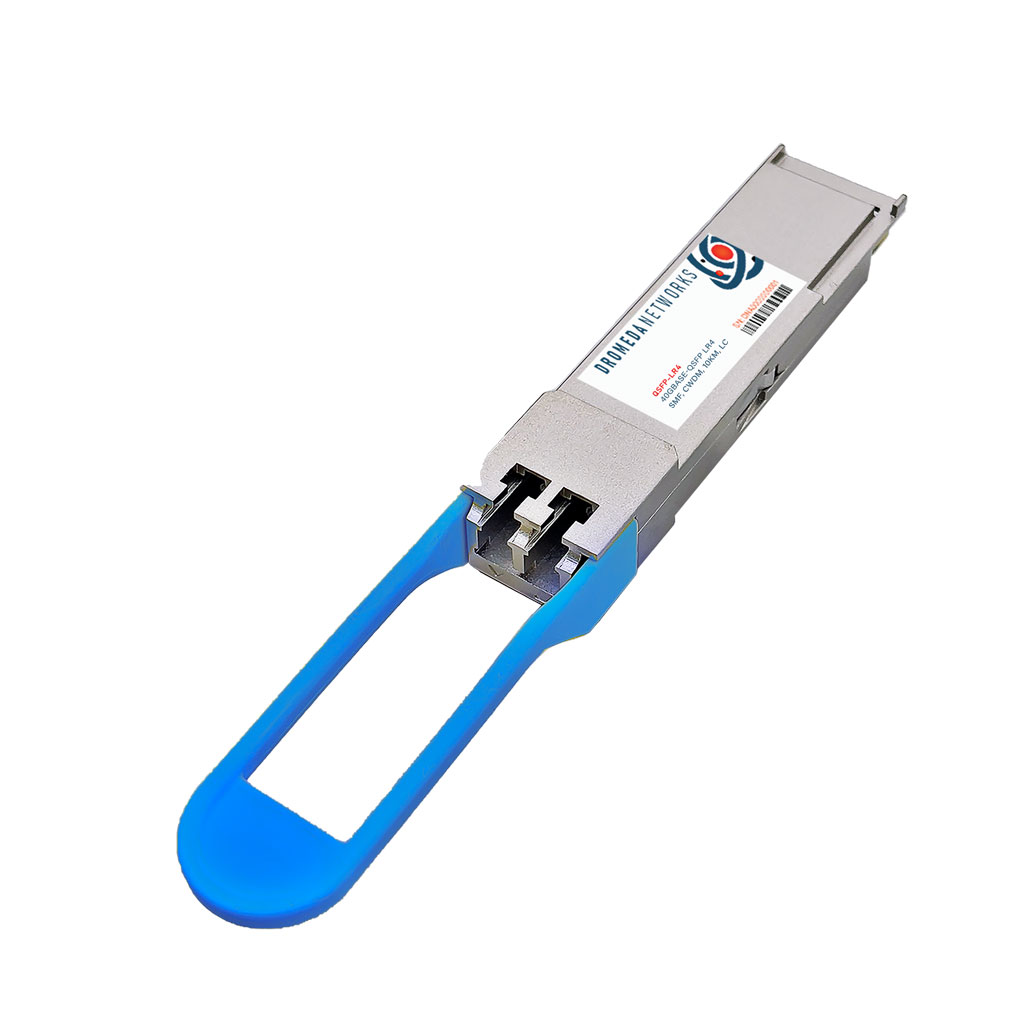

40GBASE-QSFP+ TRANSCEIVERS
Quad Form-Factor Pluggable (QSFP+) provides full range of optical transceiver from 150m to 40km reach, and has both LC or MPO interface compatible with IEEE802.3bm, SFF-8436 and other standards. It has the characteristics of low power consumption, small size and high speed, is beneficial to increase the capacity of data centers, improve the port density and reduce the power consumption. It is widely applied in large data center, MAN and other environments. The QSFP+ Form Factor includes digital diagnostics that provide management.
Dromeda Networks Provides the Following Solutions for the 40GBase QSFP+ Transceivers.
Variants: SR4, CSR4, BiDi, UNIVERSAL, LR4, PLR4, LR4L, PSM4, OC-768, OTU3
100GBASE-QSFP28 TRANSCEIVERS
Quad Form-Factor Pluggable Twenty Eight (QSFP28) provides full range of optical transceiver from 150m to 80km reachadopt MPO or LC interface and compatible with IEEE802.3bm, SFF-8636 and other standards.They have the characteristics of low power consumption, small size and high speed, and is beneficial to increasing the capacity of the data center, improve the port density and reduce the power consumption. It is widely applied in large data center, 100G Ethernet, ITU-T OTU4 and other environments. The QSFP28 Form Factor includes digital diagnostics that provide management.
Dromeda Networks Provides the Following Solutions for the 100GBase QSFP28 Transceivers.
Variants: SWDM4, SR4, BiDi, SR10, LR4, LR1, CWDM4, PSM4, 4WDM, DR1, FR1, DR1, PAM4, ER4L, ER4, ZR4

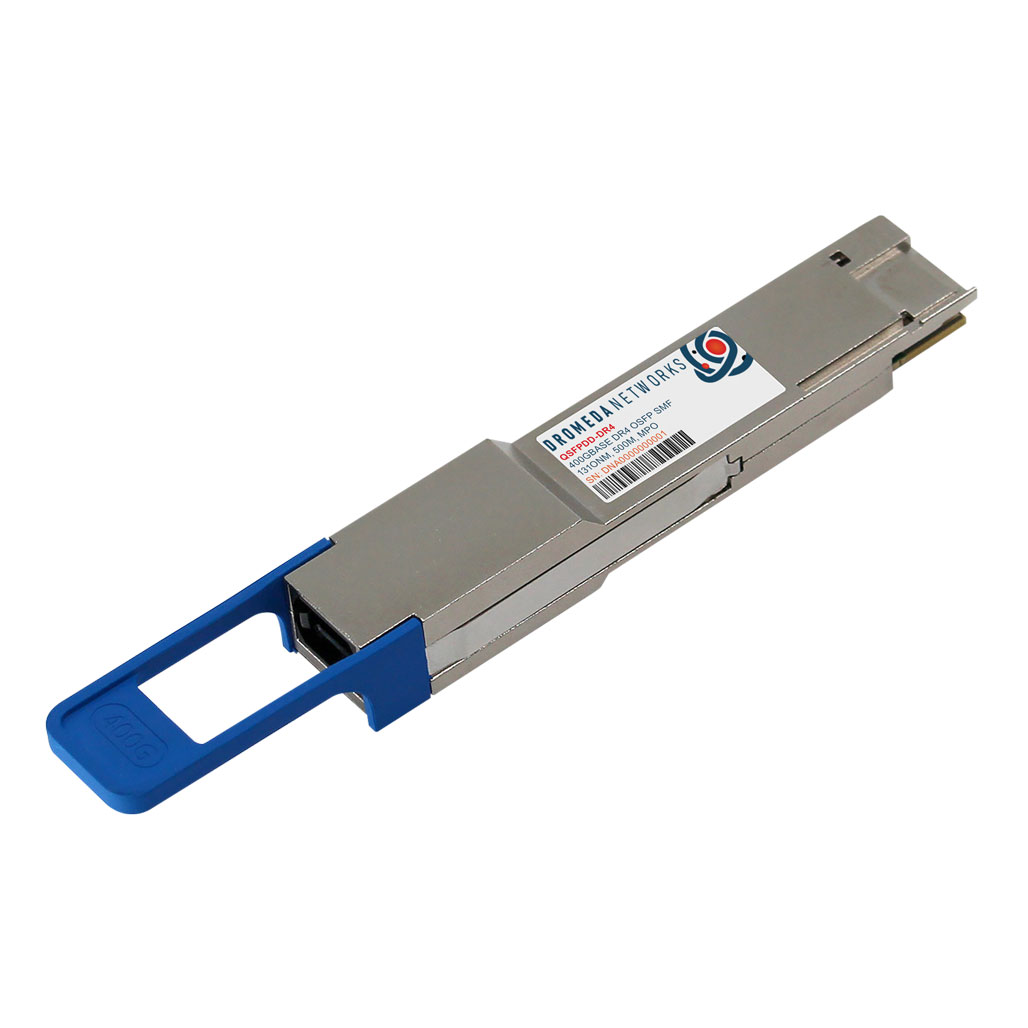

400GBASE-QSFPDD TRANSCEIVERS
Quad Small Form-Factor Pluggable Double Density (QSFP-DD) 400G QSFP-DD transceivers are defined by IEEE 802.3bs Ethernet standard and is an evolution of 100G QSFP28 transceivers. On 400G QSFP-DD 400G Ethernet is achieved with increased data throughput while maintaining the same bandwidth on per channel basis. This is due to 100G QSFP28 using NRZ (Non-Return-to-Zero) encoding and 400G QSFP-DD using PAM4 (Pulse Amplitude Modulation 4 levels) encoding. More on that in 100G Single Lambda (100G PAM & Single Lambda). The QSFP-DD Form Factor includes digital diagnostics that provide management.
Dromeda Networks Provides the Following Solutions for the 400GBase QSFP-DD Transceivers.
Variants: SR8, DR4, FR4, LR4, LR8, PLR4, 2FR4

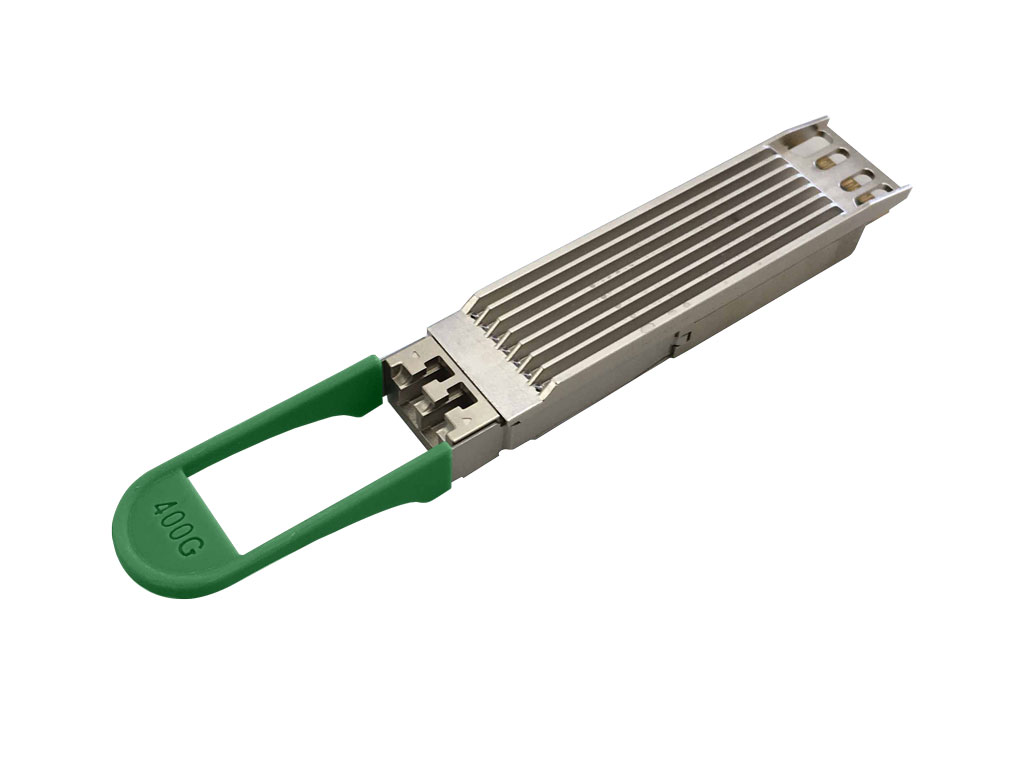

400GBASE-OSFP TRANSCEIVERS
Octal Small Form Factor Pluggable (OSFP) a new pluggable form factor with eight high speed electrical lanes that will initially support 400 Gbps (8x50G or 4x100G). OSFP is designed to support the next generation of 800G optics modules that will use eight lanes of 100Gbps, and offers backwards compatibility with 100G QSFP. They are compliant with the OSFP MSA. Digital diagnostics functions are available via the I2C interface, as specified by CMIS. The OSFP Form Factor includes digital diagnostics that provide management.
Dromeda Networks Provides the Following Solutions for the 400GBase OSFP Transceivers.
Variants: SR8, DR4, FR4, LR4, LR8, PLR4, 2FR4
